SKUInfo/Size
SABR114X32
  • Thickness (mil): 31.75
  • Dia. (in.): 1 1/4
  • Length (in.): 32
  • Coating/Material: None / Uncoated Steel
SABR114X32HDG
  • Thickness (mil): 31.75
  • Dia. (in.): 1 1/4
  • Length (in.): 32
  • Coating/Material: Hot-Dip Galvanized
SABR1X30
  • Thickness (mil): 25.4
  • Dia. (in.): 1
  • Length (in.): 30
  • Coating/Material: None / Uncoated Steel
SABR1X30HDG
  • Thickness (mil): 25.4
  • Dia. (in.): 1
  • Length (in.): 30
  • Coating/Material: Hot-Dip Galvanized
SABR3/4X26
  • Thickness (mil): 19.05
  • Dia. (in.): 3/4
  • Length (in.): 26
  • Coating/Material: None / Uncoated Steel
SABR3/4X26HDG
  • Thickness (mil): 19.05
  • Dia. (in.): 3/4
  • Length (in.): 26
  • Coating/Material: Hot-Dip Galvanized
SABR5/8X24
  • Thickness (mil): 15.875
  • Dia. (in.): 5/8
  • Length (in.): 24
  • Coating/Material: None / Uncoated Steel
SABR5/8X24HDG
  • Thickness (mil): 15.875
  • Dia. (in.): 5/8
  • Length (in.): 24
  • Coating/Material: Hot-Dip Galvanized
SABR7/8X28
  • Thickness (mil): 22.225
  • Dia. (in.): 7/8
  • Length (in.): 28
  • Coating/Material: None / Uncoated Steel
SABR7/8X28HDG
  • Thickness (mil): 22.225
  • Dia. (in.): 7/8
  • Length (in.): 28
  • Coating/Material: Hot-Dip Galvanized

Quick Overview

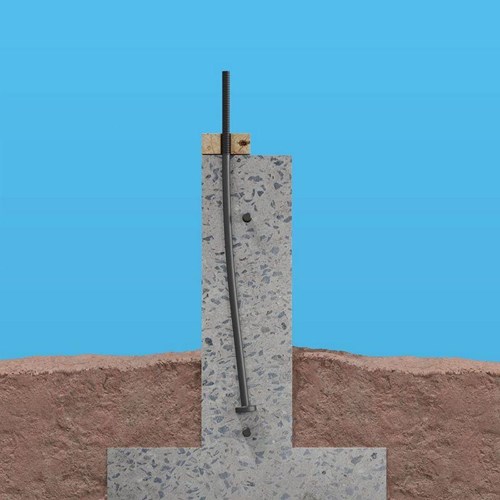

    The new SABR anchor bolt is a cast-in-place anchor that comes in a wide range of diameters. With a 6'' threaded section, this anchor bolt accommodates a variety of holdown seat heights, including all Simpson Strong-Tie holdowns, when installed on a 2x or 3x sill plate. The one-piece sweep design maximizes its position in the concrete, providing increased tension capacity. The Simpson Strong-Tie SABR anchor bolts are code listed by ICC-ES under the 2012, 2015, 2018, 2021 and 2024 IBC® and IRC®.
    • Single anchor solution for all foundation types
    • Stamped model and alignment information on the head makes it easy to identify and align for installation
    • Sweep design allows placement near the edge of concrete while increasing tension capacity
    • One-piece design eliminates potential loss of components
    • Single length for each diameter simplifies specification and makes it easier for dealers to order and inventory
Interested in this item or want more information?

Hours:

Phone: 303- 893-1030

Email: Team@Proline-Supply.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Simpson Strong-Tie
For More Information on the SABR Anchor Bolt, [Click Here] to Link to Manufacturer Web Site
