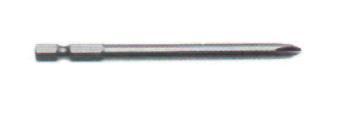

- 1/4" Hex Shank Phillips Power Bits
Interested in this item or want more information?
Hours:
Phone: 303- 893-1030
Email: Team@Proline-Supply.com
Can't find what you want? Give us a call and we can help you find it.
Details
| Phillips Bit Chart | POINT #0 - FOR SCREWS #0 & #1 |
| POINT #1 - FOR SCREWS #2 THRU #4 |
| This brief chart will help you match the screw size to the proper Phillips point. | POINT #2 - FOR SCREWS #5 THRU #10 |
| POINT #3 - FOR SCREWS #12 THRU #16 AND 1/4 |
| POINT #4 - FOR SCREWS 5/16 OR 18 AND LARGER |
| Overall Length | Point Size | Body Diameter | Part No. |
| 1-15/16" | 0 | 5/32" | 30-0P |
| 1-15/16" | 1 | 3/16" | 30-1P |
| 1-15/16" | 2 | 1/4" | 30-2P |
| 1-15/16" | 3 | 1/4" | 30-3P |
| 1-15/16" | 3 | 5/16" | 30-3PA |
| Overall Length | Point Size | Body Diameter | Part No. |
| 2-3/4" | 1 | 3/16" | 32-1P |
| 2-3/4" | 2 | 1/4" | 32-2P |
| 2-3/4" | 3 | 1/4" | 32-3P |
| 2-3/4" | 3 | 5/16" | 32-3PA |
| Overall Length | Point Size | Body Diameter | Part No. |
| 3-1/2" | 1 | 3/16" | 34-1P |
| 3-1/2" | 2 | 1/4" | 34-2P |
| 3-1/2" | 3 | 1/4" | 34-3P |
| 3-1/2" | 3 | 5/16" | 34-3PA |
| Overall Length | Point Size | Body Diameter | Part No. |
| 6" | 1 | 3/16" | 36-1P |
| 6" | 2 | 1/4" | 36-2P |
| 6" | 3 | 1/4" | 36-3P |
| 6" | 3 | 5/16" | 36-3PA |
Additional Information
Manufacturer: Qualtool, Inc.
For More Information on the Hex Shank Phillips Power Bits,
[Click Here] to Link to Manufacturer Web Site
