Quick Overview
Product Features :
- For use with slings ina basket hitch.
- Latch hooks designed to minimizesling eye damage.
- Two sets of fixed hooks are standardfor all lengths over 4'.
- Inner spread is 1/2 of outer spread.
- Extra spreads available upon request.
Interested in this item or want more information?
M - F 7am - 5pm
Phone: 303- 893-1030
Email:
Team@Proline-Supply.com
Can't find what you want? Give us a call and we can help you find it.
Details
Specifications :

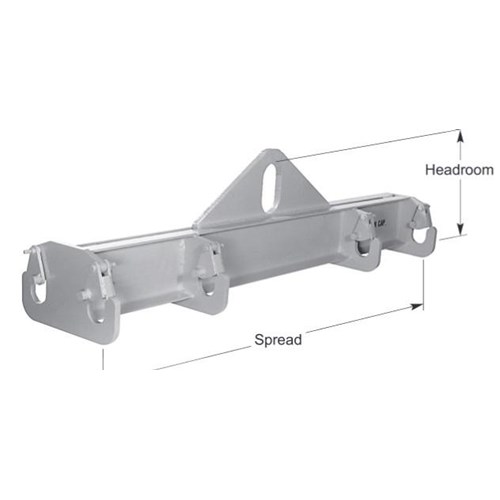

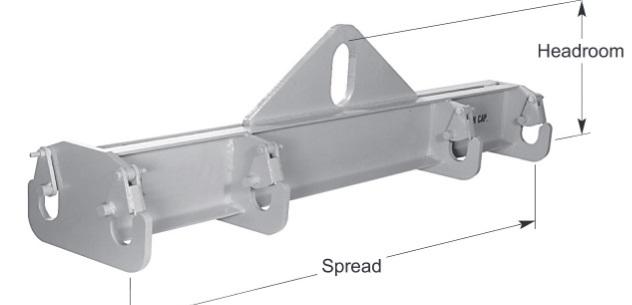

| Rated Cap. (Tons) | Part No. | Spread(Ft.) | Bail/Hook Dimensions (in.) A-B-C-T-H (in.) | Headroom (in.) | Weight (lbs.) |
| 1/2 | HDLB1x3 | 3 | A - .88 | 8 1/2 | 50 |
| HDLB1x4 | 4 | B - 3.0 | 8 1/2 | 65 |
| HDLB1x6 | 6 | C - 5.0 | 8 1/2 | 110 |
| HDLB1x8 | 8 | T - .75 | 8 1/2 | 150 |
| HDLB1x10 | 10 | H - 1.06 | 9 1/2 | 200 |
| HDLB1x12 | 12 | | 9 1/2 | 220 |
| 1 | HDLB2x3 | 3 | A - .88 | 8 1/2 | 50 |
| HDLB2x4 | 4 | B - 3.0 | 8 1/2 | 65 |
| HDLB2x6 | 6 | C - 5.0 | 9 1/2 | 145 |
| HDLB2x8 | 8 | T - .75 | 10 1/2 | 210 |
| HDLB2x10 | 10 | H - 1.12 | 10 1/2 | 230 |
| HDLB2x12 | 12 | | 11 1/2 | 290 |
| 2 | HDLB4x3 | 3 | A - .88 | 9 1/2 | 70 |
| HDLB4x4 | 4 | B - 3.0 | 10 1/2 | 90 |
| HDLB4x6 | 6 | C - 5.0 | 10 1/2 | 160 |
| HDLB4x8 | 8 | T - .75 | 11 1/2 | 225 |
| HDLB4x10 | 10 | H - 1.12 | 12 1/2 | 300 |
| HDLB4x12 | 12 | | 13 1/2 | 375 |
| 5 | HDLB10x3 | 3 | A - 2.0 | 13 1/2 | 90 |
| HDLB10x4 | 4 | B - 4.0 | 14 1/2 | 160 |
| HDLB10x6 | 6 | C - 7.0 | 15 1/2 | 275 |
| HDLB10x8 | 8 | T - 1.0 | 16 1/2 | 350 |
| HDLB10x10 | 10 | H - 1.12 | 16 1/2 | 450 |
| HDLB10x12 | 12 | | 16 1/2 | 500 |
| 7 1/2 | HDLB15x3 | 3 | A - 2.0 | 14 1/2 | 155 |
| HDLB15x4 | 4 | B - 4.0 | 15 1/2 | 180 |
| HDLB15x6 | 6 | C - 7.0 | 16 1/2 | 330 |
| HDLB15x8 | 8 | T - 1.25 | 17 1/2 | 410 |
| HDLB15x10 | 10 | H - 1.75 | 17 1/2 | 500 |
| HDLB15x12 | 12 | | 191/2 | 700 |
| 10 | HDLB20x3 | 3 | A - 2.0 | 15 1/2 | 150 |
| HDLB20x4 | 4 | B - 4.0 | 16 1/2 | 200 |
| HDLB20x6 | 6 | C - 7.0 | 17 1/2 | 320 |
| HDLB20x8 | 8 | T - 1.25 | 191/2 | 500 |
| HDLB20x10 | 10 | H - 1.75 | 191/2 | 625 |
| HDLB20x12 | 12 | | 191/2 | 700 |
View Product Details
Additional Information
Manufacturer: Lift-All
For More Information on the Heavy Duty Twin Basket Sling Lifting Beam - HDLB22,
