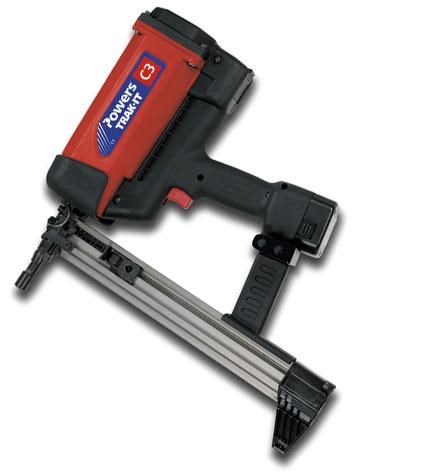

Trak-It C3    Gas Fastening System

Trak-It Fasteners and Blue Nailer-Gas Fuel Cells are designed to be used with the Powers Trak-It Tool and can also be installed with the ITW Ramset TrakFast tool. Ten fasteners are collated on each patented, plastic top hat-style strip. Use for light duty static applications such as drywall track to concrete, block or steel, lath to concrete or block, furring strips to concrete or block, and plywood to concrete or block base materials. The fuel cell, with its unique right angle metering valve, contains enough gas to install up to 1200 fasteners. Each package contains 1000 fasteners and 1 fuel cell.

Product Information :

The Trak-It C3 gas fastening system was developed for use in light-duty staticapplications, including attaching drywall track to concrete, block or steel, lath to concreteor block, furring strips to concrete or block, and plywood to concrete or block basematerials. The system is designed for speed, efficiency and consistency. Operation of agas fastening system does not require licensing.

General Applications and Uses

Attaching steel track to concrete, block or steel

Attaching plywood to concrete or block

Attaching lath to concrete, block or steel

Attaching furring strips to concrete or block

Features and Benefits :

+No licensing required
+ Each fuel cell contains enough gas to install up to 1,000 fasteners
+ Available for use with Stick-E accessories
+ Short or long track versions

Approvals and Listings :

International Code Council, Evaluation Service (ICC-ES), ESR-2036 (Formerly ER-6157)City of Los Angeles (COLA) Research Report LARR-25523

Guide Specifications :

CSI Divisions: 03151–Concrete Anchoring, 04081-Masonry Anchorage, 05090-MetalFastenings, 06090-Wood and Plastic Fastenings, 09260-Finishes. Gas fastening systemsshall be Trak-It as supplied by Powers Fasteners, Inc.

Tool Specifications :

Tool Body : Precision Moulded Aluminum and Plastic

Tool Length : 17"

Tool Weight : 8 lbs

Pin Length : 1 - 1/2" total length

Pin Capacity : 42 pins (22 pins - short track)

Power Capacity : 90 joules

Approximate Shots per Fuel Cell : 1,000 pins

Approximate Shots per Battery Charge : 5,500

View Product Specification

Manufacturer: Anchors Powers DeWalt

For More Information on the Trak-It C3 – Gas Fastening System, [Click Here] to Link to Manufacturer Web Site
