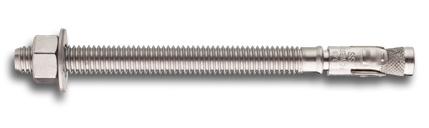

Power-Stud+ SD4 and Power-Stud+ SD6
Stainless Steel Wedge Expansion Anchors

Product Description :
The Power-Stud+ SD4 and Power-Stud+ SD6 anchors are fully threaded, torque-controlled,stainless steel wedge expansion anchors which are designed for consistent performancein cracked and uncracked concrete. Suitable base material is normal-weight and sandlightweightconcrete. The anchor is manufactured with a stainless steel body andexpansion clip. Nut and washer are included.

General Applications and Uses :

Structural connections, i.e., beam and column anchorage

Safety-related attachments

Interior and exterior applications

Tension zone applications, i.e., cable trays and strut, pipe supports, fire sprinklers

Features and Benefits :
+ Knurled mandrel design provides consistent performance and helps prevent gallingduring service life.
+ Nominal drill bit size is the same as the anchor diameter
+ Anchor can be installed through standard fixture holes
+ Length ID code and identifying marking stamped on head of each anchor
+ Anchor design allows for follow-up expansion after setting under tensile loading
+ Category 1 corrosion resistant stainless steel anchors

Approvals and Listings :
International Code Council Evaluation Service (ICC-ES), Evaluation Service Report PendingTested in accordance with ACI 355.2 and ICC-ES AC193 for use in structural concrete under the design provisions of ACI 318 (Strength Design method using Appendix D)

Guide Specifications :
CSI Divisions: 03151-Concrete Anchoring, 05090-Metal Fastenings and 050519 Postinstalled concrete anchors. Expansion anchors shall be Power-Stud+ SD4 and Power-Stud+ SD6 as supplied by Powers Fasteners, Inc., Brewster, NY. Anchors shall be installed in accordance with published instructions and the Authority Having Jurisdiction.

View Product Specification

View Approvals

Manufacturer: Anchors Powers DeWalt

For More Information on the Power-Stud+ SD4 and Power-Stud+ SD6, [Click Here] to Link to Manufacturer Web Site
