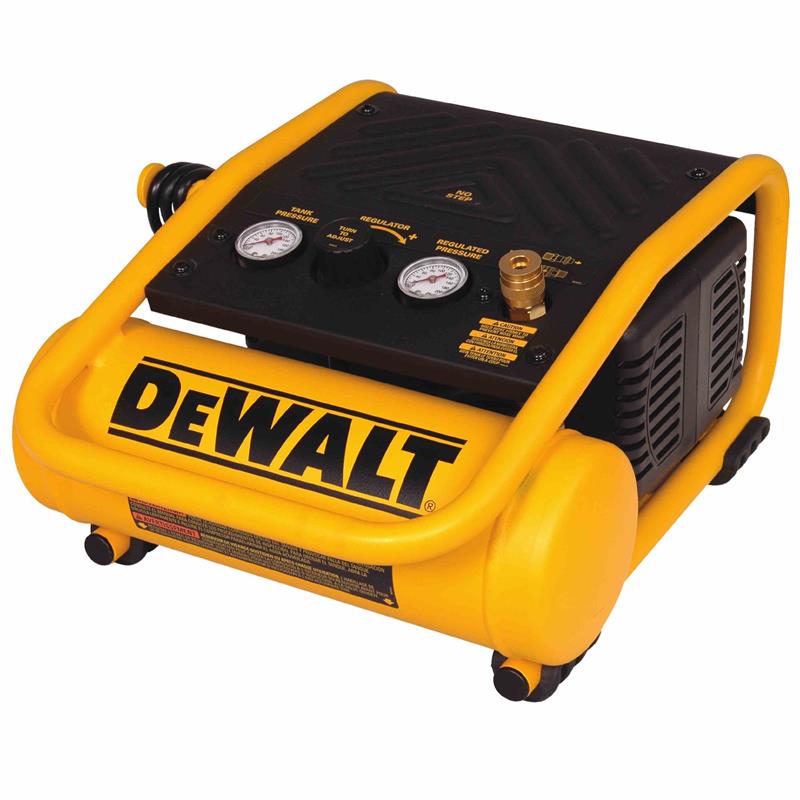

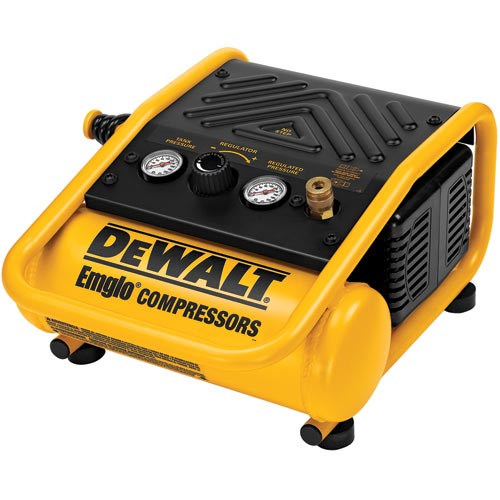

Features & Specs

FEATURES

• .75 SCFM delivered @ 90 PSI pump, 1.0 gallon tank and 135 max PSI enables more nails to be fired and provides quicker recovery
• Durable oil free pump provides extended maintenance-free operation
• Low 71 dBA* allows for quieter operation (*Tested per ISO3744)
• Roll cage and control panel provide protection to key compressor components
• Low 2.6 amp draw motor provides easy start-up and reduces breaker tripping
• Lightweight (24 lbs), thin (9.0") and compact design is easy to carry and store
• Ball valve drain allows for quick and thorough tank draining
• One quick coupler to easily support 1 nailer
• Convenient cord wrap for easy storage
• High-flow regulator for increased performance

Specifications

• CFM @ 100 PSI 1.0@40PSI, .9@60PSI, .75@90PSI, .7@100PSI, .5@135PSI CFM
• Drive Belt
• Horsepower 0.3 HP
• Power Supply 120V, 60Hz, 2.6 amps., PMDC motor
• Pump Speed 2,200 rpm
• Shipping Weight 29 lbs
• Tank Size 1 gal
• Tool Height 9.0 in
• Tool Length 19.0 in
• Tool Weight 24 lbs
• Tool Width 14.5 in

Manufacturer: DeWalt
