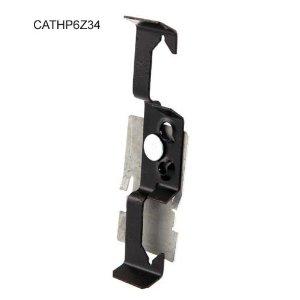

Rod/Flange Assembly For 3/8” Threaded Rod & 3/8”-9/16” Flange
Quick Overview
- Wide-base design with smooth, beveled edges provides a large bending radius for 10 Gb Systems for all J-Hook sizes.
- Meets ISO/IEC 18010, TIA-569-B and is used for large-diameter cable, including Cat. 6a & Cat. 7.
- Accommodates a var
Interested in this item or want more information?
Hours:
Phone: 303- 893-1030
Email: Team@Proline-Supply.com
Can't find what you want? Give us a call and we can help you find it.
Details
Specifications :-
| Part Number | Description | Box Qty. | Wt/Box (lbs.) | Product Family |
| CATHPAN | Angle bracket with 3/16” Mounting Hole | 50 | 1.7 | MH |
| CATHPA4 | Angle bracket with 1/4” Threaded Rod Mounting Hole | 50 | 1.65 | MH |
| CATHPA6 | Angle bracket with 3/8” Threaded Rod Mounting Hole | 50 | 1.65 | MH |
| CATHPS4 | Straight bracket with .282” Mounting Hole | 50 | 1.05 | MH |
| CATHPTM | Tree mounting bracket | 50 | 2.7 | MH |
| CATHP24 | Hammer-on assembly for 1/4”-1/8” flange with 360º rotation | 25 | 2.13 | MH |
| CATHP58 | Hammer-on assembly for 5/16”-1/2” flange with 360º rotation | 25 | 2.25 | MH |
| CATHP912 | Hammer-on assembly for 1/2”-3/4” flange with 360º rotation | 25 | 2.63 | MH |
| CATHPBCB | Screw-on beam assembly for 1/8”-1/2” flange with 360º rotation | 25 | 2.13 | MH |
| CATHPBC200B | Screw-on beam assembly for 1/8”-5/8” flange with 360º rotation | 25 | 3.6 | MH |
| CATHP24SM | Hammer-on assembly for 1/8”-1/4” flange | 50 | 2.6 | MH |
| CATHP58SM | Hammer-on assembly for 5/16”-1/2” flange | 50 | 2.75 | MH |
| CATHP912SM | Hammer-on assembly for 1/2”-3/4” flange | 25 | 1.5 | MH |
| CATHPBC | Screw-on beam assembly for 1/8”-1/2” flange | 50 | 3.5 | MH |
| CATHPBC200 | Screw-on beam assembly for 1/8”-5/8” flange | 25 | 3.43 | MH |
| CATHPAF14 | Z purlin assembly for 1/16”-1/4” flange | 50 | 3.1 | MH |
| CATHPVF14 | C purlin assembly for 1/16”-1/4” vertical flange | 50 | 3.4 | MH |
| CATHPESC | Easy strut assembly | 50 | 2.2 | MH |
| CATHP4Z34 | Rod/flange assembly for #12 SWG - 1/4” wire or plain rod, 1/4” threaded rod & 1/8”-3/8” flange | 50 | 2.3 | MH |
| CATHP6Z34 | Rod/flange assembly for 3/8” threaded rod & 3/8”-9/16” flange | 50 | 2.25 | MH |
| CATHPCD0B | Underfloor assembly for 3/4” round pedestal | 25 | 1.78 | MH |
| CATHPCD1B | Underfloor assembly for 7/8” - 1 1/8” round pedestal or 3/4” square pedestal | 25 | 2.4 | MH |
| CATHPCD2B | Underfloor assembly for 7/8” square pedestal | 25 | 2.85 | MH |
| CATHPCD2.5B | Underfloor assembly for 1” square pedestal | 25 | 3.05 | MH |
| CAT16HPTS | Acoustical tee bar assembly | 25 | 7.25 | MH |
| CATHPPLR | Cable puller for CATHP | 2 | 1.8 | MH |
Additional Information
Manufacturer: Caddy
For More Information on the Rod/Flange Assembly For 3/8” Threaded Rod And 3/8”-9/16” Flange,
[Click Here] to Link to Manufacturer Web Site
