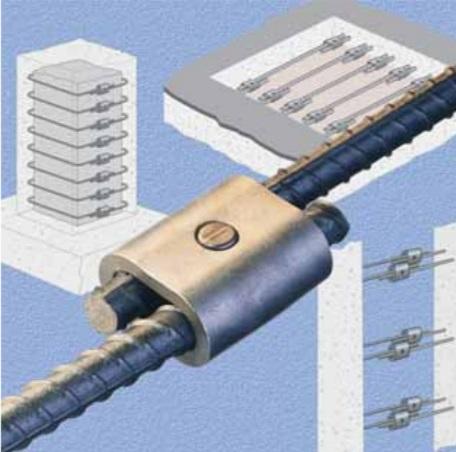

Lenton Quick Wedge Rebar Splice

ML5

Caddy

Quick Overview

Quick installations result in accelerated job scheduling
Cost effective with one-cycle tool operation
Minimal exposed bar-ends result in reduced concrete chipping (as short as 2-9/16” (65 mm))
Only one-man “crew” needed to

Interested in this item or want more information?

Hours: M - F 7am - 5pm

Phone: 303- 893-1030

Email: Team@Proline-Supply.com

Can't find what you want? Give us a call and we can help you find it.

Details

Specifications :-

Rebar Size Designation				Part Number	Article Number	“A”		“B”		“C”		“D”		“E”		“F”		“G”		“G”		Weight
in-lb	Metric	Canadian	Soft Metric	Part Number	Article Number	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	lb	kg
*—	12mm	10M	—	ML12MM	145700	39454	48	39452	41	42370	27	39452	41	2	51	2-9/16	65	5	127	2-1/2	64	0.42	0.19
4	12mm	—	13	ML4	—	39454	48	42380	43	42370	27	39452	41	1-15/16	49	2-9/16	65	5	127	2-1/2	64	0.44	0.2
*5	16mm	15M	16	ML5	145710	38018	57	42384	49	42374	33	37989	44	1-15/16	49	2-3/4	70	5	127	2-1/2	64	.72	0.33
6	20mm	20M	19	ML6	—	38020	70	39481	60	42378	40	42384	49	1-7/8	48	3	76	5	127	3	76	1.34	0.61
*—	20mm	—	—	ML20MM	145720	38020	70	39481	60	42378	40	42384	49	1-7/8	48	3	76	5	127	3	76	1.34	0.61

Additional Information

Manufacturer: Caddy

For More Information on the Lenton Quick Wedge Rebar Splice, [Click Here] to Link to Manufacturer Web Site
