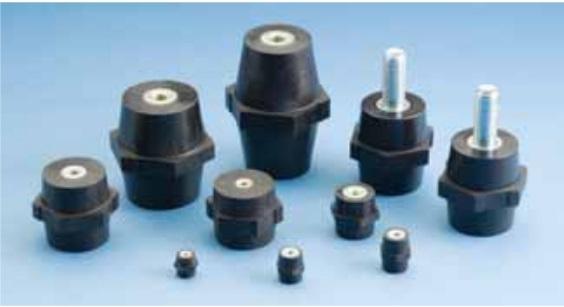

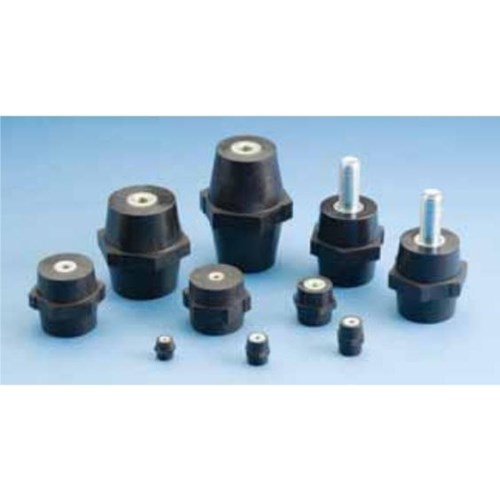

caddy ISOTP35M6L

Quick Overview

Working temperature -40°C up to 130°C
Polyamide material reinforced with glass fibre,
Halogen free
Zinc plated steel inserts, threaded to ISO standard
Great stability of electrical and mechanical parameters

Interested in this item or want more information?

Hours: M - F 7am - 5pm

Phone: 303- 893-1030

Email: Team@Proline-Supply.com

Can't find what you want? Give us a call and we can help you find it.

Details

Specifications :-

Part no.	Description	Dimensional Characteristics						Nominal Voltage		Mechanical		Packaging	Weight
Part no.	Description	H mm	Ch mm	F mm	h1 mm	D mm	P mm	alternating v	Direct v	Tensile strength	bending strength	Packaging	Weight
548400	ISOTP15M4	15	14	M4X0,7	4	12	16	500	500	150	100	50	0,005
548410	ISOTP20M4	20	17	M4X0,7	4	15	20	1000	1500	150	100	50	0,008
548420	ISOTP20M6	20	17	M6X1	6	15	20	1000	1500	150	100	50	0,012
548700	ISOTP25M5	25	19	M5X0,8	6	18	20	1000	1500	300	160	50	0,016
548430	ISOTP25M6	25	19	M6X1	6	18	20	1000	1500	300	160	50	0,016
548440	ISOTP30M6	30	30	M6X1	8	26	34	1000	1500	600	300	25	0,034
548450	ISOTP30M8	30	30	M8X1,25	8	26	34	1000	1500	600	300	25	0,046
548470	ISOTP35M6L	35	41	M6X1	8	34	46	1000	1500	1100	500	25	0,062
548480	ISOTP35M8	35	41	M8X1,25	8	34	46	1000	1500	1100	800	25	0,074
548490	ISOTP35M10	35	41	M10X1,5	10	34	46	1000	1500	1100	800	25	0,092
548500	ISOTP40M6	40	46	M6X1	9	40	53	1000	1500	1100	800	25	0,098
548510	ISOTP40M8	40	46	M8X1,25	8	40	53	1000	1500	1100	800	25	0,104
548520	ISOTP40M10	40	46	M10X1,5	10	40	53	1000	1500	1100	450	25	0,102
548511	ISOTP40M12	40	46	M12X1,75	14,5	40	53	1000	1500	1100	450	25	0,102
548530	ISOTP45M6	45	41	M6X1	9	34	47	1000	1500	1100	650	25	0,104
548540	ISOTP45M8	45	41	M8X1,25	15	34	47	1000	1500	1100	650	25	0,136
548550	ISOTP45M8L	45	50	M8X1,25	15	41	57	1000	1500	1800	1000	25	0,132
548560	ISOTP45M10	45	50	M10X1,5	10	41	57	1000	1500	1800	700	25	0,116
548570	ISOTP50M6	50	50	M6X1	9	41	57	1000	1500	2000	700	25	0,152
548580	ISOTP50M8	50	50	M8X1,25	15	41	57	1000	1500	2000	1000	25	0,148
548590	ISOTP50M10	50	50	M10X1,5	10	41	57	1000	1500	2000	1000	25	0,196
548581	ISOTP50M12	50	50	M12X1,75	14,5	41	57	1000	1500	2000	1000	25	0,190
548600	ISOTP60M8	60	55	M8X1,25	15	44	63	1000	1500	2200	1000	25	0,192
548610	ISOTP60M10	60	55	M10X1,5	10	44	63	1000	1500	2200	1000	25	0,380
548601	ISOTP60M12	60	55	M12X1,75	14,5	44	63	1000	1500	2200	1000	25	0,360
548602	ISOTP60M16	60	55	M16X2	20	44	63	1000	1500	2200	1000	10	0,480
548609	ISOTP70M10	70	65	M10X1,5	10	52	75	1000	1500	2200	1000	10	0,470
548620	ISOTP70M12	70	65	M12X1,75	14	52	75	1000	1500	2500	1600	10	0,374
548630	ISOTP70M16	70	65	M16X2	20	52	75	1000	1500	2500	1600	25	0,116
548629	ISOTP75M10	75	65	M10X1,5	10	51	75	1000	1500	2200	1000	10	0,530
548640	ISOTP75M12	75	65	M12X1,75	14	51	75	1000	1500	3000	1600	10	0,470
548650	ISOTP75M16	75	65	M16X2	20	51	75	1000	1500	3000	1600	10	0,382
548660	ISOTP80M12	80	65	M12X1,75	14	52	75	1000	1500	3000	1600	10	0,510
548670	ISOTP80M16	80	65	M16X2	20	52	75	1000	1500	3000	1600	10	0,404
548680	ISOTP100M12	100	65	M12X1,75	14	46	75	1000	1500	3000	1000	10	0,476
548690	ISOTP100M16	100	65	M16X2	20	46	75	1000	1500	3000	1500	10	0,508

Additional Information

Manufacturer: Caddy

For More Information on the 35 Mm Iso-Tp Low Voltage Metric Insulator, [Click Here] to Link to Manufacturer Web Site
