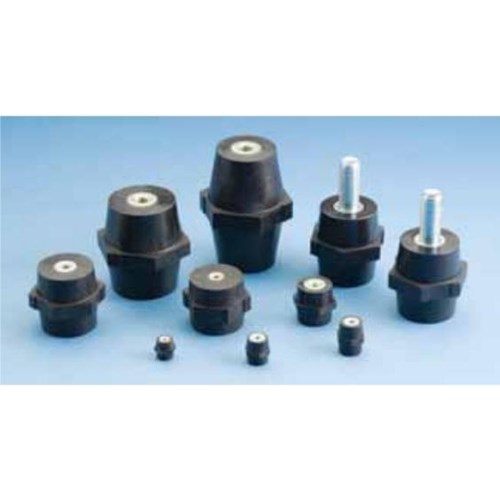

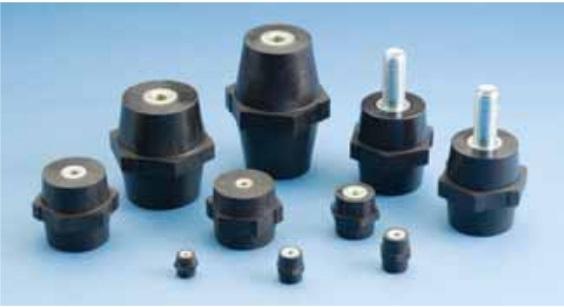

45 Mm Iso-Tp Low Voltage Metric Insulator

ISOTP45M10

Caddy

Quick Overview

    • Working temperature -40°C up to 130°C
    • Polyamide material reinforced with glass fibre,
    • Halogen free
    • Zinc plated steel inserts, threaded to ISO standard
    • Great stability of electrical and mechanical parameters
Interested in this item or want more information?

Hours:

Phone: 303- 893-1030

Email: Team@Proline-Supply.com

Can't find what you want? Give us a call and we can help you find it.

Details


Specifications :-

Part no.DescriptionDimensional CharacteristicsNominal VoltageMechanicalPackagingWeight
H mmCh mmF mmh1 mmD mmP mmalternating vDirect vTensile strengthbending strength
548400ISOTP15M41514M4X0,741216500500150100500,005
548410ISOTP20M42017M4X0,74152010001500150100500,008
548420ISOTP20M62017M6X16152010001500150100500,012
548700ISOTP25M52519M5X0,86182010001500300160500,016
548430ISOTP25M62519M6X16182010001500300160500,016
548440ISOTP30M63030M6X18263410001500600300250,034
548450ISOTP30M83030M8X1,258263410001500600300250,046
548470ISOTP35M6L3541M6X183446100015001100500250,062
548480ISOTP35M83541M8X1,2583446100015001100800250,074
548490ISOTP35M103541M10X1,5103446100015001100800250,092
548500ISOTP40M64046M6X194053100015001100800250,098
548510ISOTP40M84046M8X1,2584053100015001100800250,104
548520ISOTP40M104046M10X1,5104053100015001100450250,102
548511ISOTP40M124046M12X1,7514,54053100015001100450250,102
548530ISOTP45M64541M6X193447100015001100650250,104
548540ISOTP45M84541M8X1,25153447100015001100650250,136
548550ISOTP45M8L4550M8X1,251541571000150018001000250,132
548560ISOTP45M104550M10X1,5104157100015001800700250,116
548570ISOTP50M65050M6X194157100015002000700250,152
548580ISOTP50M85050M8X1,251541571000150020001000250,148
548590ISOTP50M105050M10X1,51041571000150020001000250,196
548581ISOTP50M125050M12X1,7514,541571000150020001000250,190
548600ISOTP60M86055M8X1,251544631000150022001000250,192
548610ISOTP60M106055M10X1,51044631000150022001000250,380
548601ISOTP60M126055M12X1,7514,544631000150022001000250,360
548602ISOTP60M166055M16X22044631000150022001000100,480
548609ISOTP70M107065M10X1,51052751000150022001000100,470
548620ISOTP70M127065M12X1,751452751000150025001600100,374
548630ISOTP70M167065M16X22052751000150025001600250,116
548629ISOTP75M107565M10X1,51051751000150022001000100,530
548640ISOTP75M127565M12X1,751451751000150030001600100,470
548650ISOTP75M167565M16X22051751000150030001600100,382
548660ISOTP80M128065M12X1,751452751000150030001600100,510
548670ISOTP80M168065M16X22052751000150030001600100,404
548680ISOTP100M1210065M12X1,751446751000150030001000100,476
548690ISOTP100M1610065M16X22046751000150030001500100,508

Additional Information


Manufacturer: Caddy
For More Information on the 45 Mm Iso-Tp Low Voltage Metric Insulator, [Click Here] to Link to Manufacturer Web Site
