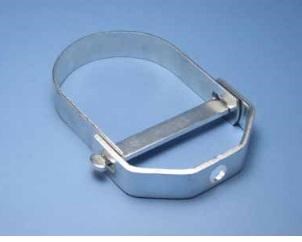

Slot Lock

4270250EG

Caddy

Quick Overview

    • Size range: 1/2” thru 8”
    • Finish: Electro-zinc plated (EG)
    • Slotted crossbeam design is easier to assemble than conventional nut and bolt style clevis hangers
    • Eliminates the need to install additional parts to control deflect
Interested in this item or want more information?

Hours:

Phone: 303- 893-1030

Email: Team@Proline-Supply.com

Can't find what you want? Give us a call and we can help you find it.

Details

Specifications :-

Part no.Nominal Steel Pipe SizeRSABMax. Rec. Load (lbs)
4270050EG1/23/82-11/162-3/16610
4270075EG3/43/83-2/162-8/16610
4270100EG13/83-7/162-11/16610
4270125EG1-1/43/83-12/162-14/16610
4270150EG1-1/23/84-3/163-3/16610
4270200EG23/84-13/163-9/16610
4270250EG372881/25-7/163-14/161130
4270300EG31/26-5/164-7/161130
4270400EG45/885-9/161130
4270500EG55/89-13/166-13/161430
4270600EG63/411-7/167-15/161940
4270800EG83/414-2/169-9/162000

Additional Information

Manufacturer: Caddy
For More Information on the Slot Lock, [Click Here] to Link to Manufacturer Web Site
