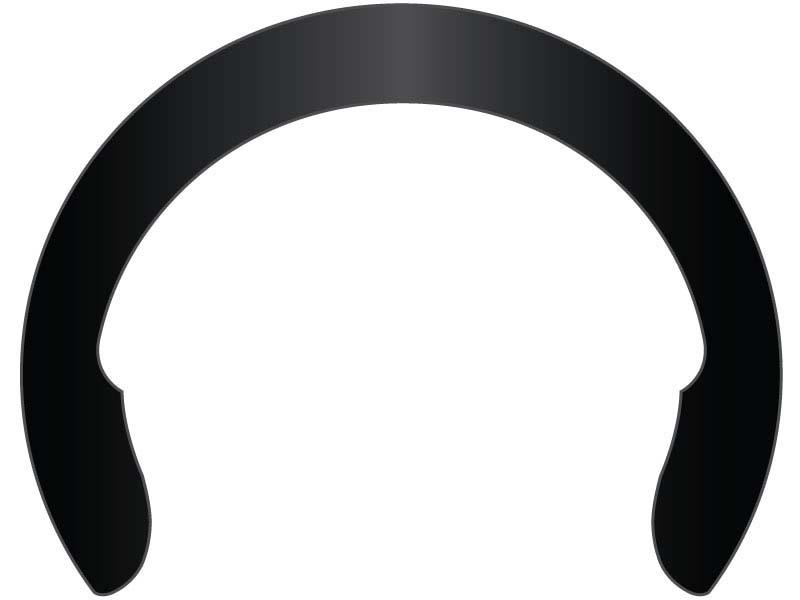

Crescent Ring External 5/32 CS PH

C-015/B

Crescent

Quick Overview

    Interested in this item or want more information?

    Hours:

    Phone: 303- 893-1030

    Email: Team@Proline-Supply.com

    Can't find what you want? Give us a call and we can help you find it.

    Details


    Attribute Name
    Value

    Weight (lbs.)
    0.00005
    Allowable Corner Chamfers:
    .014
    Allowable Corner Radii:
    .018
    Brand:
    Rotor Clip
    Clear Outside Diameter:
    .205
    Clearance Diameter Released in Groove:
    .220
    Edge Margin:
    .020
    Finish:
    Phosphate
    Free Diameter:
    .131
    Free Diameter Tolerance:
    +.002/ -.004
    Groove Depth Reference:
    .0105
    Groove Diameter:
    .135
    Groove Diameter to Shaft Concentricity:
    .0015
    Groove Diameter Tolerance:
    ±.0015
    Groove Width:
    .020
    Groove Width Tolerance:
    +.002 / -.000
    Hardness:
    HR15N 86-88.5
    Inch or Metric:
    Inch
    Manufacturer Part Number:
    C-15ST PA
    Material:
    Carbon Spring Steel
    Maximum Section:
    .037
    Maximum Section Tolerance:
    ±.003
    Maximum Thrust Load:
    100
    Shaft Diameter:
    5/32"
    Style:
    Stamped
    Thickness:
    .015
    Thickness Tolerance:
    ±.002
    Type:
    Cresent Ring - Ext

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.
