Tuflex Eye And Eye Roundslings

Lift-All

Product Features :

An additional jacket of texturized, abrasion resistantnylon covers the body of the standardTuflex, formingtwo color coded lifting eyes
Saves money by extending sling life where abra-sion to sling body is a problem.
Transverse pick yarns position surface yarns andprotect core yarns
Woven surface yarns also protect core yarns,carry no load.

Hours: M - F 7am - 5pm

Phone: 303- 893-1030

Email: Team@Proline-Supply.com

Can't find what you want? Give us a call and we can help you find it.

Specifications :

Part No.	Color	Rated Capacity (lbs.)				Minimum Length(ft.)	Approximate Measurements

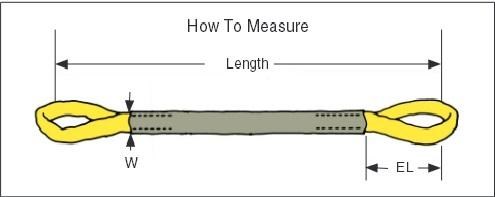

Part No.	Color	Vertical	Choker	Basket 90 Degree	Basket 45 Degree	Minimum Length(ft.)	Weight (lbs. / ft.)	Body Width at Load(W)(in.)	Standard Eye Length(EL)(in.)	Minimum Hardware Diameter(in.)
EN30	Purple	2600	2100	5200	3600	4	.25	2 1/4	10	7/16
EN60	Green	5300	4200	10600	7400	4	.36	2 1/2	10	5/8
EN90	Yellow	8400	6700	16800	11800	4	.50	2 1/2	12	3/4
EN120	Tan	10600	8500	21200	14000	5	.60	3 1/2	12	7/8
EN150	Red	13200	10600	26400	18000	5	.84	3 1/2	14	1
EN180	White	16800	13400	33600	23000	7	.96	3 1/2	16	1 1/8
EN240	Blue	21200	17000	42400	29000	7	1.5	4 1/4	16	1 3/16
EN360	Grey	31000	24800	62000	43000	7	1.8	6	20	1 1/2
EN600	Brown	53000	42400	106000	74000	8	2.7	7 3/4	24	2
EN800	Olive	66000	52800	132000	93000	10	3.3	8	30	2 1/8
EN1000	Black	90000	72000	180000	127000	12	4.2	9	36	2 1/2

Manufacturer: Lift-All

For More Information on the Tuflex Eye And Eye Roundslings, [Click Here] to Link to Manufacturer Web Site
